Forged vs Cast vs Flow-Formed Wheels

Manufacturing Processes and Their Impact on Strength, Weight, and Fatigue Performance

1. Introduction

In motorsports and high-performance automotive applications, wheel selection is not a cosmetic decision. Wheels are primary load-bearing structural components that experience complex multiaxial loading, including radial loads from vehicle mass, lateral loads from cornering, torsional loads from braking and acceleration, and high-cycle fatigue induced by road and track irregularities. The manufacturing process used to produce a wheel directly governs its mechanical properties, mass efficiency, and durability.

The three dominant wheel manufacturing methods used today; casting, flow forming, and forging produce wheels with fundamentally different material structures and performance envelopes. While all three can meet basic regulatory standards, their suitability for motorsport or aggressive track use varies significantly.

This document provides a technical comparison of these processes, focusing on material behavior, strength-to-weight efficiency, fatigue life, and failure modes, rather than marketing terminology or brand positioning.

2. Cast Wheels

2.1 Process Overview

Cast wheels are typically produced using gravity casting or low-pressure casting, where molten aluminum alloy is poured or forced into a mold and allowed to solidify. Once cooled, the wheel is removed, machined to final tolerances, and finished.

Casting is cost-effective and highly scalable, which explains its widespread use in OEM passenger vehicles and entry-level aftermarket wheels.

2.2 Material Structure and Properties

Casting results in a random grain structure with relatively large grains and an inherent likelihood of internal defects such as:

• Gas porosity
• Shrinkage voids
• Non-metallic inclusions

Even with modern low-pressure techniques, these features cannot be fully eliminated. As a result, cast aluminum exhibits lower ductility, lower fatigue resistance, and greater variability in material properties compared to mechanically worked material.

To compensate for these limitations, cast wheels are typically designed with increased wall thickness and conservative geometry, which directly increases mass.

2.3 Performance Implications

Cast wheels are generally suitable for:

• Daily driving
• Low-load duty cycles
• Cost-sensitive applications

However, under sustained high load or track use, cast wheels are more susceptible to:

• Crack initiation at porosity sites
• Reduced fatigue life under cyclic loading
• Brittle or semi-brittle fracture modes under impact

For performance applications, these characteristics limit both durability and mass efficiency.

3. Flow-Formed Wheels

3.1 Process Overview

Flow forming (also referred to as flow forging or rotary forging) is a hybrid manufacturing process. The wheel begins as a cast preform, typically with a thick barrel section. While heated, the barrel is mechanically rolled and stretched over a mandrel using high-pressure rollers.

This localized plastic deformation refines the barrel geometry and material properties while the wheel center remains cast.

3.2 Material Structure and Properties

Flow forming improves the barrel section by:

• Elongating and aligning grains circumferentially
• Reducing porosity in the worked region
• Increasing yield and tensile strength locally

The center section, where the spokes, hub bore, and lug interfaces reside, retains the original cast microstructure. As a result, the wheel exhibits non-uniform material properties across its geometry.

3.3 Performance Implications

Flow-formed wheels offer a meaningful improvement over fully cast wheels:

• Reduced barrel thickness and lower overall mass
• Improved hoop strength and radial load capacity
• Better fatigue resistance in the barrel region

For many track-day, autocross, and club-level motorsport applications, flow-formed wheels represent a balanced compromise between cost and performance.

However, because the most highly stressed regions of the wheel remain cast, fatigue behavior and stiffness are not fully optimized for extreme loading environments.

4. Forged Wheels

4.1 Process Overview

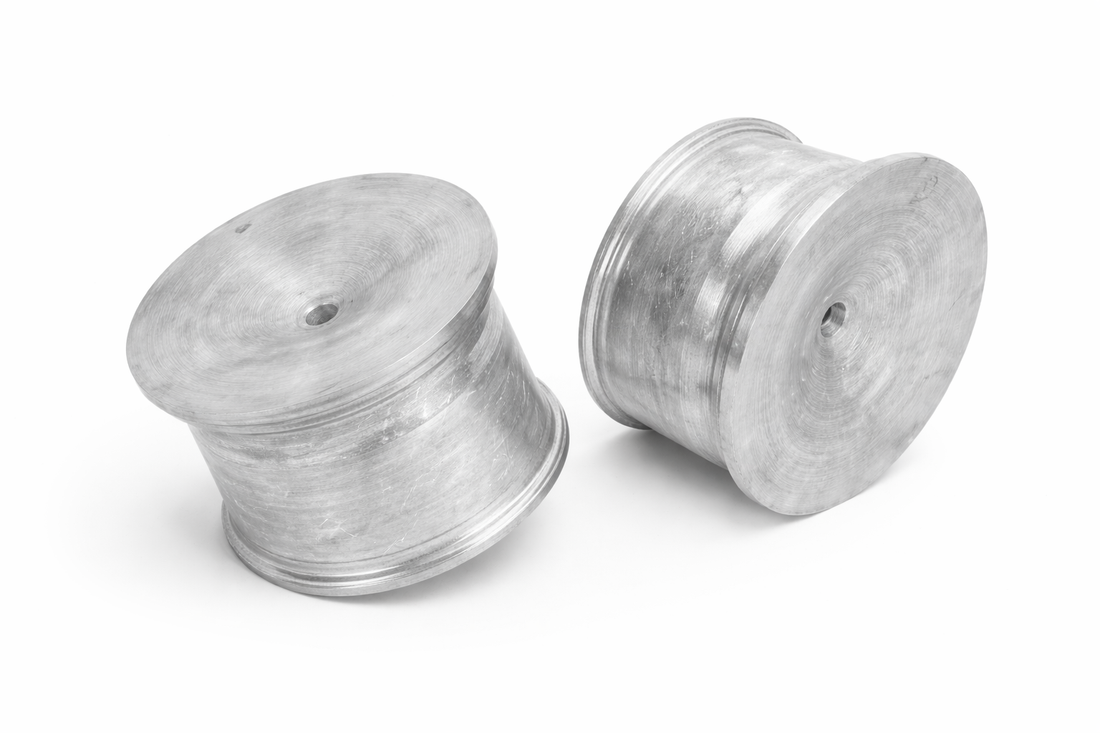

Forged wheels are produced by subjecting a solid aluminum billet or puck to extreme compressive forces, often several thousand tons, to plastically deform the material into a near-net wheel blank. Final geometry is achieved through precision CNC machining.

Unlike casting, forging does not involve molten metal, eliminating solidification-related defects.

4.2 Material Structure and Properties

The forging process produces a dense, continuous grain structure that follows the geometry of the wheel. This results in:

• Minimal porosity
• High ductility
• Increased yield and tensile strength
• Superior fatigue resistance

Because the material strength is inherently higher and more consistent, forged wheels can achieve required performance targets with significantly less material, enabling substantial mass reduction without compromising safety margins.

4.3 Performance Implications

Forged wheels are the preferred solution for:

• Professional motorsports
• High-aero vehicles
• Endurance racing
• Heavy or high-power platforms

Key advantages include:

• Exceptional strength-to-weight ratio
• Predictable deformation behavior under overload
• Long fatigue life under high-cycle loading

The primary disadvantage is cost, driven by tooling investment, press time, and extensive CNC machining.

5. Comparative Summary

Attribute	Cast	Flow-Formed	Forged
Manufacturing Method	Molten aluminum into mold	Cast preform + mechanical rolling	Solid billet compressed under high force
Grain Structure	Random, coarse	Refined in barrel only	Fully aligned and continuous
Porosity	Moderate to high	Reduced in barrel	Minimal
Strength-to-Weight	Low	Medium	High
Typical Weight	Highest	Medium	Lowest
Fatigue Resistance	Lowest	Improved	Excellent
Cost	Lowest	Medium	Highest
Motorsports Suitability	Limited	Moderate	Ideal

6. Failure Modes and Safety Considerations

Failure behavior is a critical distinction between wheel manufacturing methods:

• Cast wheels tend to develop cracks that propagate rapidly once initiated.
• Flow-formed wheels show improved barrel durability but may fail at the cast center under extreme loading.
• Forged wheels typically deform plastically before catastrophic failure, providing visual warning and maintaining tire retention.

From an engineering and safety perspective, predictable failure behavior is often as important as ultimate strength.

6.1 Why Aerodynamically Loaded Cars Tend Toward Forged Wheels

Aerodynamic downforce fundamentally alters the loading environment experienced by a wheel. Unlike vehicle mass, which is relatively constant, aerodynamic loads scale with speed and are often concentrated at specific axles and corners. At high velocity, downforce can equal or exceed static vehicle weight, significantly increasing the forces transmitted through the wheel.

Aero-loaded vehicles impose:

• Higher sustained radial loads
• Elevated lateral loads due to increased tire grip
• Increased braking and drive torque transmission
• Long-duration, high-cycle fatigue loading

These loads are not only larger in magnitude but also more continuous and repeatable, particularly in time-attack, endurance, and high-downforce track applications. As a result, fatigue performance becomes the dominant design driver, not just peak strength.

Forged wheels are favored in these environments because their continuous, aligned grain structure provides superior resistance to crack initiation and propagation under cyclic loading. This allows forged designs to maintain structural integrity at lower mass while preserving safety margins across a wide operating envelope.

As aerodynamic performance increases, the margin between acceptable and critical stress narrows, making material consistency and fatigue behavior paramount. In this context, forged wheels are not merely a weight optimization choice—they are a structural reliability decision.

7. Frequently Asked Questions (FAQ)

7.1 Are forged wheels always stronger than cast wheels?

In terms of material properties and fatigue resistance, yes. Forged aluminum exhibits higher yield strength, tensile strength, and ductility. Overall wheel strength still depends on geometry and design which are validated during testing.

7.2 Is flow forming essentially the same as forging?

No. Flow forming plastically deforms only the barrel section of a cast wheel. While the barrel may approach forged-like properties, the wheel center remains cast and governs overall fatigue behavior.

7.3 Why do forged wheels cost significantly more?

The cost increase is driven by high-tonnage forging presses, specialized tooling, longer machining time, and lower production volume. The added cost reflects improved material efficiency, durability, and consistency.

7.4 Are forged wheels required for track use?

Not universally. Lightweight vehicles with modest grip and aero can perform well on high-quality flow-formed wheels. As vehicle mass, grip level, and aerodynamic load increase, forged wheels become increasingly justified.

7.5 How does wheel weight affect performance?

Reducing wheel mass lowers unsprung mass and rotational inertia, improving suspension response, acceleration, braking, and tire contact consistency. These benefits scale with grip and downforce.

7.6 Do forged wheels crack?

All wheels can crack under sufficient load or impact. Forged wheels are less prone to sudden crack propagation and more likely to deform plastically first, providing warning before failure.

7.7 What matters more: manufacturing process or design?

Both. A well-designed flow-formed wheel can outperform a poorly designed forged wheel. Forging, however, expands the achievable design envelope by allowing higher performance at lower mass.

8. Conclusion

Wheel manufacturing method is not a marketing checkbox, it is a materials engineering decision with direct consequences for strength, fatigue life, mass efficiency, and safety. Casting remains viable for low-load applications, flow forming offers a meaningful intermediate step, and forging represents the highest-performance solution currently available.

For motorsports and aerodynamically loaded vehicles, forged wheels provide unmatched consistency and durability under extreme loading. The correct choice depends on vehicle mass, grip level, aerodynamic load, duty cycle, and acceptable risk margin.
